Multi Wire Pairs SHDSL
ACCEED 1416 supports bonded high speed symmetrical Carrier Ethernet services up to 102.4 Mbit/s on bonded copper pairs.

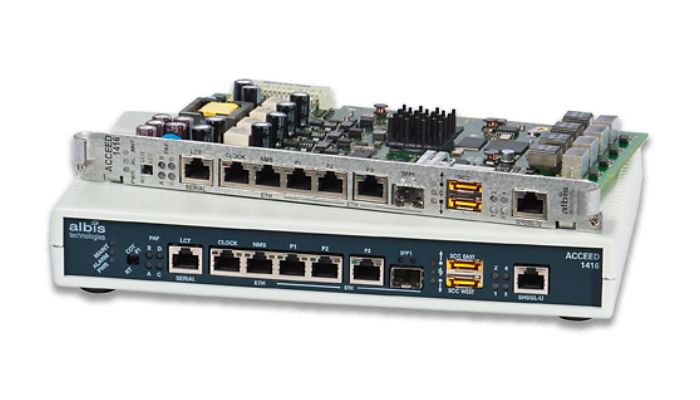

ACCEED 1416
Description
Multi Wire Pairs SHDSL
Carrier Ethernet Access and Demarcation Unit and Line Card for ULAF+ Access Switch
ACCEED 1416 supports bonded high speed symmetrical Carrier Ethernet services up to 102.4 Mbit/s on bonded copper pairs.
Comprehensive traffic management at the user network interface (UNI) and integrated E1 CES interworking functions enable the implementation of a broad variety of crucial applications where fiber is not available.
Technical data
- Ethernet over up to 16 bonded copper wire pairs
- Standard compliant IEEE 802.3ah EFM
- Supports SFF 8472 compliant SFP with DDM
- Sub 50ms Ethernet linear and ring protection switching
- Rate adaptive SHDSL
- Network demarcation allowing SLA enforcement
- Ethernet services with guaranteed bandwidth per flow
- Non blocking line rate switching
- Integrated CES interworking function
- E1 interface to support legacy customer equipment
- Synchronization with SyncE, 2048 kbit/s, 2048 kHz and SHDSL symbol clock
- Standard Ethernet Link and Service OAM
- 3.3ms CCM intervals
- Built-in remote power supply
- Up to 8 repeater stages supported
- Built-in Y.1564 Service Activation Test
- Intuitive graphical configuration tool
- Zero Touch Provisioning
Application areas
High Speed Business Access
Network Demarcation for Wholesale Solutions
Reliable Mobile Backhaul
Business Access for Rural Areas
Utility Solutions
