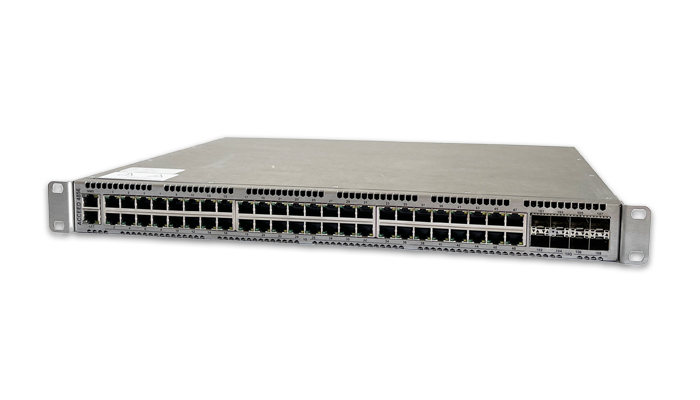

ACCEED 4856

56 Port Carrier Ethernet Aggregation & Routing Device

The ACCEED 4856 Aggregation Switch with 8x 10G and 48x 1G interfaces supports protected Carrier Ethernet Aggregation as well as switching & routing in datacenter & DCN networks combined with a comprehensive SLA enforcement for aggregation of more than thousand services.

10G Fibre | ETH
Category:

Description

10G Ethernet Aggregation & Routing
56 Port Carrier Ethernet Aggregation & Routing Device

The ACCEED 4856 Aggregation Switch with 8x 10G and 48x 1G interfaces supports protected Carrier Ethernet Aggregation as well as switching & routing in datacenter & DCN networks combined with a comprehensive SLA enforcement for aggregation of more than thousand services. Together with its doubled and hot-swappable power supply units it is perfectly designed for high resilient and secured application.

Extensive traffic management and supervision at the user network interface (UNI) as well as integrated OAM functions enable the implementation of a broad variety of crucial applications.

Technical data

  • 10 Gbps Ethernet aggregation and routing*
  • Supports SFP+ and SFP with DDM
  • Network demarcation allowing SLA enforcement for thousands of flows
  • Ethernet services with guaranteed bandwidth per flow
  • Hierarchical bandwidth profiles
  • 128 Gbit/s full-duplex line rate switching
  • Sub-50 ms switchover time for Ethernet Linear and Ring Protection Switching
  • Support of RSTP/ MSTP
  • LAG and Multi Chassis LAG
  • Standard Ethernet Link and Service OAM
  • 3.3 ms CCM intervals
  • Built-in 10 Gbit/s Traffic Generator for Y.1564 Service Activation Test and L1/L2 Data Rate Measurement
  • TWAMP
  • Static and dynamic routing* (i.e. BGP)
  • Static MPLS pseudowire tunneling
  • Intuitive graphical configuration tool
  • NETCONF/YANG
  • CLI/ SSH
  • Zero Touch Provisioning
  • Redundant and hot-swappable AC & DC power supply units
  • Embedded energy meter acc. to ETSI ES 202 336-12 (max. +/-6% energy meter tolerance)

* subject to future software release

Application areas

High Speed Business Access
Highly secured and protected Ethernet Aggregation
Wholesale Interconnect
Utility Solutions
Switching and routing in datacenter and data communication networks (DCN)

Data sheet

For more information, please download the data sheet.
