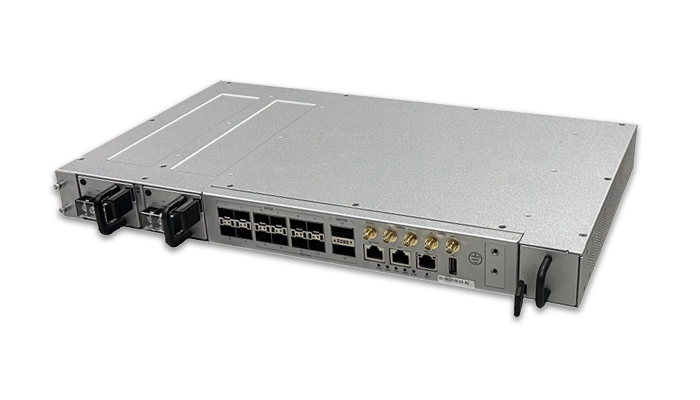

ACCEED 8212

ACCEED 8212

100G Cell Site / Aggregation Switch & Routing with SyncE/PTP

ACCEED 8212 is a high performance 500 Gbit/s full duplex non-blocking platform with the support of 100 Gbit/s and 10 Gbit/s interfaces. 40 Gbit/s, 25 Gbit/s and 1 Gbit/s interface speed are supported as well.

100G Fibre | ETH | Sync
Category:

Description

100G Cell Site / Aggregation Switch & Routing with SyncE/PTP
2 x 100GbE and 12 x 25/10GbE Carrier Ethernet Aggregation & Routing*

ACCEED 8212 is a high performance 500 Gbit/s full duplex non-blocking platform with the support of 100 Gbit/s and 10 Gbit/s interfaces. 40 Gbit/s, 25 Gbit/s and 1 Gbit/s interface speed are supported as well.

ACCEED 8212 provides protected highspeed Carrier Ethernet. With the combination of extended temperature range and synchronisation support via SyncE/PTP it is optimized for mobile x-haul use cases.

Comprehensive SLA enforcement for thousands of services and outstanding OAM support as well as resilience features make this platform perfect to offer guaranteed best in class services to your customers.

ACCEED 8212 has a unique operator friendly design. The device is only 250 mm deep, and everything is accessible via the front.

Extensive traffic management and supervision, high performance feature rich and robust – ACCEED 8212 the solution for your network.

Technical data

  • 100 Gigabit per second Ethernet aggregation and routing*
  • 2 x 100GbE/40GbE via QSFP28 (DDM)
  • 12 x 25GbE/10GbE/1GbE via SFP28 (DDM)
  • Network demarcation allowing SLA enforcement for thousands of flows
  • Ethernet services with guaranteed bandwidth per flow
  • Hierarchical bandwidth profiles
  • 500 Gbit/s full-duplex line rate switching
  • Sub-50 ms switchover time for Ethernet Linear and Ring Protection Switching
  • Support of RSTP/ MSTP
  • LAG and Multi Chassis LAG
  • Standard Ethernet Link and Service OAM
  • 3.3 ms CCM intervals
  • Static and dynamic routing* (i.e. BGP)
  • Static MPLS pseudowire tunnelling
  • Intuitive graphical configuration tool
  • NETCONF/YANG
  • CLI/ SSH
  • Zero Touch Provisioning
  • Redundant and hot-swappable AC & DC power supply units

*subject to future software release

Application areas

Mobile x-haul with support of SyncE/PTP
High performance service aggregation
Carrier Ethernet Demarcation with MEF CE 3.0 compliance
High Speed Business Access
Protected Ethernet 100G Demarcation
Wholesale Interconnect

Data sheet

For more information, please download the data sheet.
