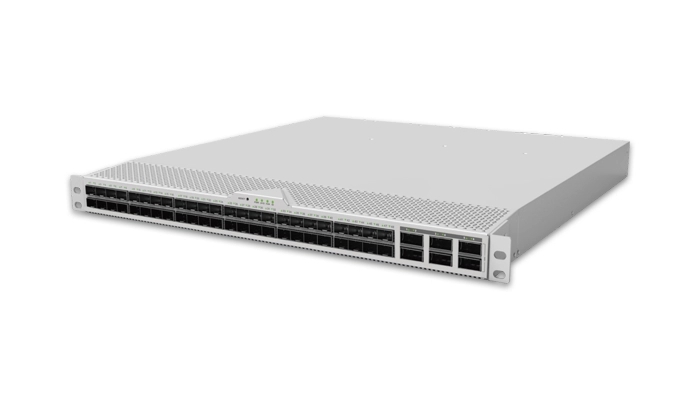

ACCEED 8648 PTP

100G Ethernet Aggregation & Routing with SyncE/PTP

ACCEED 8648 is a high performance 1.08 Tbit/s full duplex non-blocking platform with the support of 100 Gbit/s and 10 Gbit/s interfaces. 40 Gbit/s and 1 Gbit/s interface speed are supported as well.

100G Fibre | ETH | Sync
Category:

Description

100G Ethernet Aggregation & Routing with SyncE/PTP
6 x 100GbE and 48 x 10GbE Carrier Ethernet Aggregation Device

ACCEED 8648 is a high performance 1.08 Tbit/s full duplex non-blocking platform with the support of 100 Gbit/s and 10 Gbit/s interfaces. 40 Gbit/s and 1 Gbit/s interface speed are supported as well.

The platform provides protected Carrier Ethernet aggregation. This includes comprehensive SLA enforcement for thousands of services.

Outstanding OAM support and resilience features make this platform perfect to offer guaranteed best in class services to your customers.

Extensive traffic management and supervision, high performance feature rich and robust – ACCEED 8648 the solution for your network.

Technical data

  • 100 Gigabit per second Ethernet aggregation and routing*
  • 6 x 100GbE/40GbE via QSFP28 (DDM)
  • 48 x 10GbE/1GbE via SFP+ (DDM)
  • Carrier Ethernet Aggregation and comprehensive SLA enforcement
  • Synchronization with IEEE 1588v2, SyncE
  • Ethernet services with guaranteed bandwidth per flow
  • Hierarchical bandwidth profiles
  • 1.08 Tbit/s full-duplex line rate switching
  • Sub-50 ms switchover time for Ethernet Linear and Ring Protection Switching
  • Support of RSTP/ MSTP
  • LAG and Multi Chassis LAG
  • Standard Ethernet Link and Service OAM
  • 3.3 ms CCM intervals
  • Static and dynamic routing* (i.e. BGP)
  • Static MPLS pseudowire tunnelling
  • Intuitive graphical configuration tool
  • NETCONF/YANG
  • CLI/ SSH
  • Zero Touch Provisioning
  • Redundant and hot-swappable AC & DC power supply units

*subject to future software release

Application areas

High performance service aggregation
Data center switching
High Speed Business Access
Protected Ethernet 100G Demarcation
Wholesale Interconnect
Utility Solutions
