Modular 10 Gigabit Carrier Ethernet Aggregator and CES Gateway
The AG7860A is an optimized solution for transmitting many different data types, including traditional circuit-based traffic, over a packet-based transportation network.

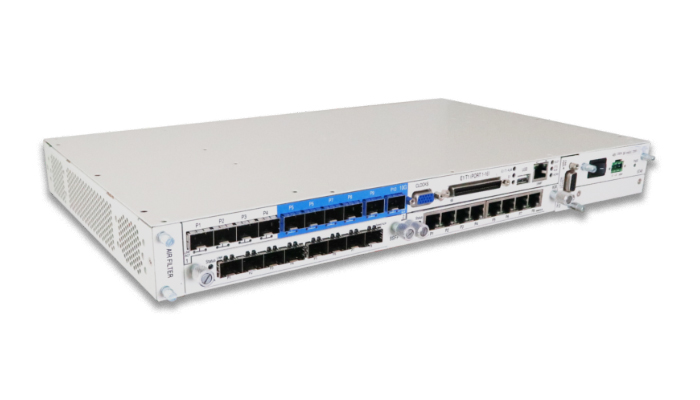

AG7860A
Description
Circuit Emulation Service Gateway
Grooming Switch for the ULAF+ access and aggregation platform
The AG7860A is an optimized solution for transmitting many different data types, including traditional circuit-based traffic, over a packet-based transportation network. Circuit Emulation technologies supported by AG7860A are CESoPSN (Nx64K), SAToP (Unframed E1/T1), and CEP (SDH/SONET Circuit Emulation over Packet). AG7860A supports Carrier Ethernet (EPL, EVPL, ELAN, EVC defined in MEF) for packet transportation and can be used in various network architectures like hub, ring or mesh.
The compact AG7860A is only 1U high, supports an extended temperature range and provides carrier grade availability and reliability.
Technical data
- AG7860A base system:
6x 10 Gbit/s or 1 Gbit/s SFP+
4x 1 Gbit/s SFP
16x E1/T1 Interfaces - AG7860A provides two additional expansion slots for tributary cards (this enables maximal flexibility):
32 port E1/T1 Tributary,
4 port STM-1/ 1 port STM-4 Tributary (MPS support) - Circuit Emulation: up to 80 E1/T1 interfaces, 1024 pseudowires, DS0 grooming
- Synchronisation: SyncE, IEEE 1588v2 PTP, ToD, 1PPS
Application areas
SAToP and CESoP circuit emulation
CES gateway
E1 grooming
PDH to SDH cross-connect
