GIGA Technology – Access Module
Research shows that customers will require multiple types of networks to enable all their devices to communicate with one another inside the home and industry.
GHN.M2
Description

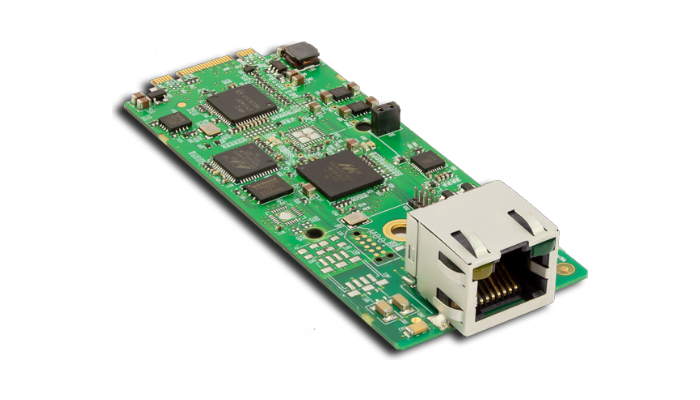

GIGA Technology – Access Module
for universal enterprise CPE like uCPE/IAD/Gateway/Router/PC/White Box
Research shows that customers will require multiple types of networks to enable all their devices to communicate with one another inside the home and industry. Today, no single technology can suitably address all these applications and devices. GiGA Technology is the technology to make it possible. GiGA Technology works over any wire in the home, including power lines, phone lines, coax cable for TVs and optical fiber. The technology is standardized by ITU-T G.9960 – 9964.
Technical data
- IEEE 802.1d transparent bridge
- Standards: ITU-T G.9960/ 9961/ 9962/ 9964
- Ethernet: IEEE 802.3/ 802.1p/ 802.1q
- IGMP v2, v3 Snooping
- Support 802.1p pbit and DSCP mapping
- VLAN Tag Add/Removal/Translation
- Management via Webinterface or custom config tool
- Features depending on M.2 connector type (B+M):
– Core functionality at the PCIe lane 0 (available for key B and key M) for data and in-band management
– Additional function out-of-band management over USB (only for key B) - Phone line uplink port with a maximum rate of 1.7 Gbps
- Best suited for industrial networking, more reliable and faster than conventional wireless networking
- Signal quality indication
- Status and statistics of Ethernet Interface
- Fully transparent bridge for G.hn/GiGAWire, to enable routing on host
- Made for universal enterprise CPE / IAD /Gateway / Router / PC / White Box CPE
Application areas
Business Customer Networking
Industrial Networking
Multiple types of networks
Enables connectivity of virtualisation device over copper networks
Supports SD-WAN deployments
