Management Module
The PSM 1001 is a state of the art management module which helps network operators to monitor and manage up to 253 PSC units cost-efficiently via the SNMP v2/3 protocol.

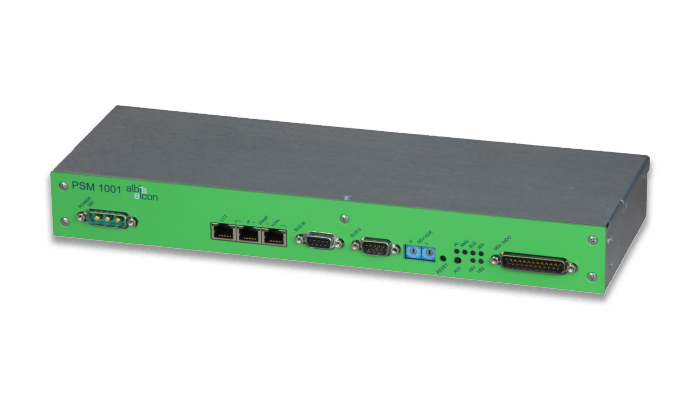

PSM 1001
Description
Management Module
for the Remote Powering System RPS 1600
The PSM 1001 is a state of the art management module which helps network operators to monitor and manage up to 253 PSC units cost-efficiently via the SNMP v2/3 protocol. The integrated RS 485 interface allows a dedicated configuration for each RPS 1600 / PSC 08xx component within the network. For a local configuration the module offers an integrated CLI.
Technical data
- Supports up to 253 x PSC 1600
- Supports up to 506 x PSR 08xx
- Embedded LCT / CLI
- Embedded 2-port Ethernet switch
- Southbound interface: RS485
- Northbound interface: SNMPv2/3
- 4 x discrete outputs: MDO, dry contacts, alarms
- 4 x discrete inputs: MDI, e.g. door contacts
- Required components at central office: PSC 1600 / PSC 08xx
- Optional: Network Management Software MetroIntegrator
- Small footprint (W x D x H): 355 mm x 122 mm x 44 mm
Application areas
FTTC – Feeding of active components in street cabinets from central office site, e.g. micro-DSLAMs, VDSL2-ONU
FTTB/H – Feeding of active components in buildings from central offices or street cabinets, e.g. micro-DSLAMs, ONU (Eth or VDSL out), fibre switches
Mobile nodes – Providing remote power for small cell-nodes for 4G / 5G networks (eNodeB)
Power resilience for critical telecommunication applications, e.g. emergency lines, monitoring systems, CCTV
